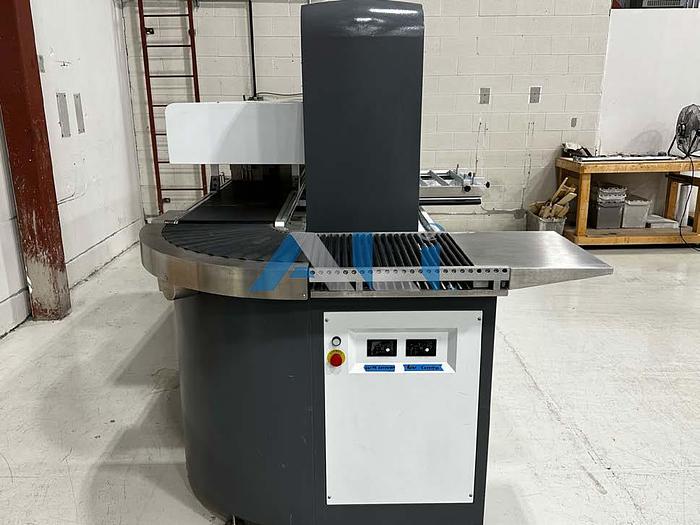

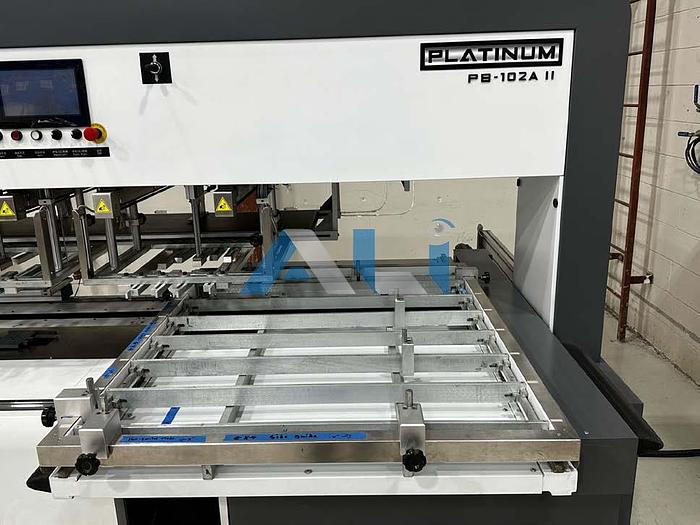

2020 Platinum PB-102A II

ALI Reference #: 105971

This blanker is a great machineto help with production time. This is another great offing from Asset Liquidity's bindery and offset printing equipment.

Details:

• 2020 Platinum PB-102A II
• Fully-Automatic Dual-head blanking system for running sheets with nested blanks,
• Heavy-Duty, quality-built gantry structure main frame,
• Frame style supporting base for precision blanking action ensuring damage free loads,
• Equipped with high-precision linear bearing rails and servo motors for smooth and precise frame movement,

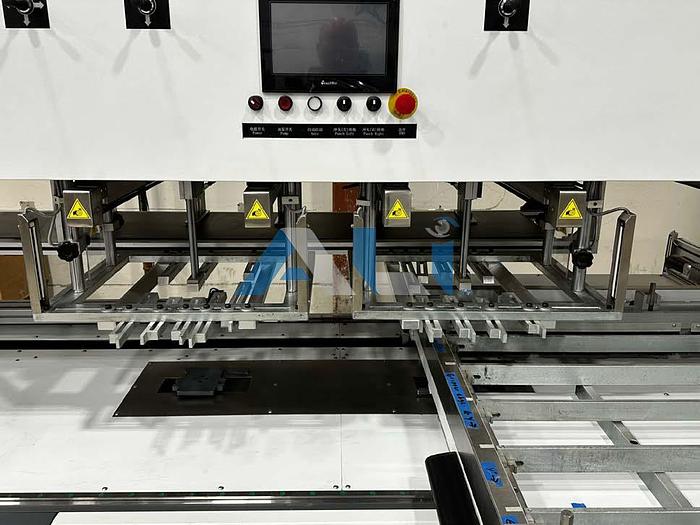

• Operator friendly touch screen for quick and simple programing,
• Automated loading to conveyor to reduce labor and increase blanking speed,
• Max Sheet Size: 1020 x 960mm (40.15″ x 37.8″),
• Min. Sheet Size: 300mm x 300mm (11.8″ x 11.8″),
• Max. Blank Size: 450mm x 350mm (17.7″ x 13.8″),
• Min. Blank Size: 35mm x 60mm (1.4″ x 2.4″),
• Maximum Working Pressure: 2.5,
• Pile Height: 50mm – 85mm (2″ – 3.3″),
• Speed: 20 Cycles / Hour
